| Item | Specification |
|---|---|

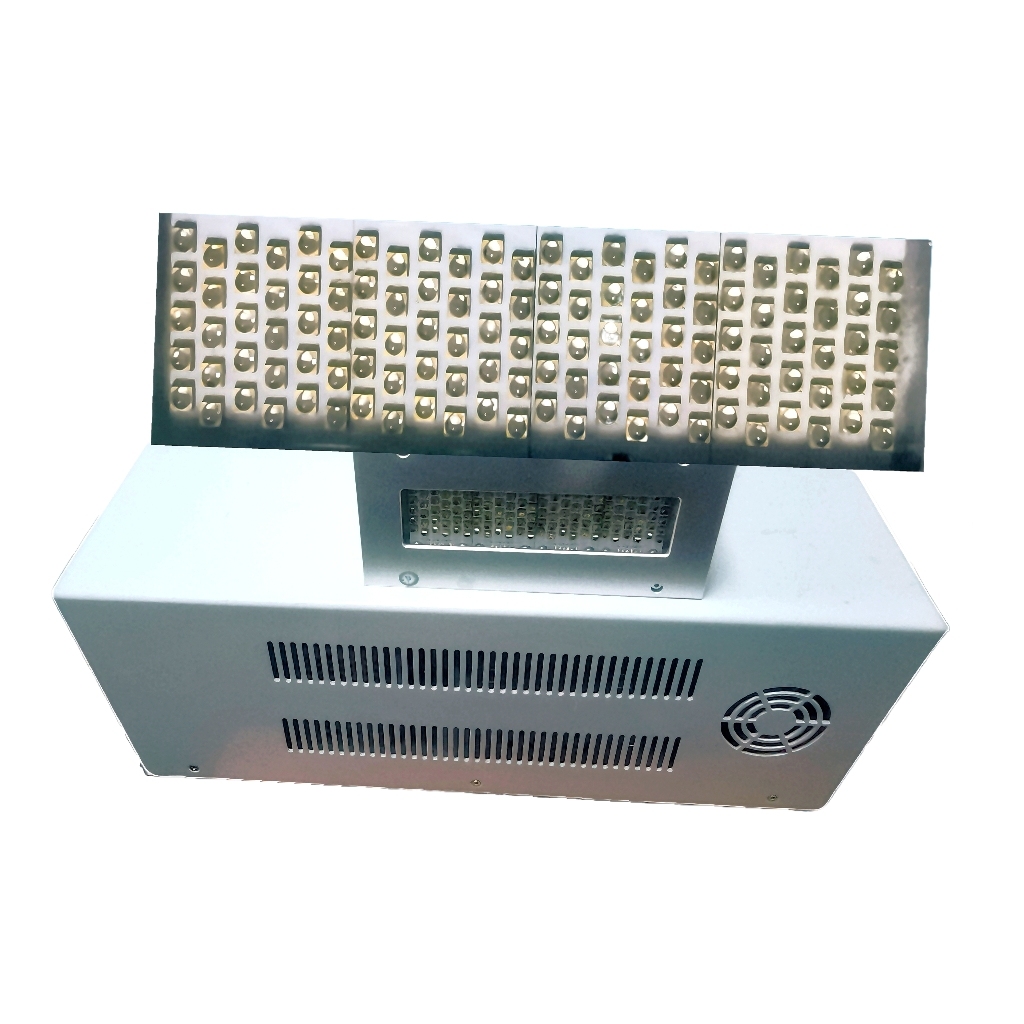

| Product Name | UV LED Curing system |
| Model Number | JSY-12030-395-H |
| Irradiation Area | 120*30 (mm) (L×W) |
| Dimensions | 165× 85 × 110mm (L×W×H) |
| UV Wavelength | 395 nm （385nm, 395 nm or 365nm wavelength is optional） |
| Control Mode | Three control modes are available: Automatic, Manual, and Foot Pedal, which can be flexibly switched according to different production scenarios |
| Cooling Method | Air Cooling |
| Power Adjustment Range | 10% - 100% |
| Life Time | ≥10,000 Hours |
| Peak Irradiance | 4000 mW/cm² (Tested at 10 mm Height) |
| Power | 150 W |
| Voltage | 220 VAC |
✅ Packaging & Printing
Fits flexo/screen/digital printing
For labels, color boxes, flexible packaging (varnishing/laminating/bonding)
Advantage: Uniform gloss, anti-scratch, solvent-free | Meets food/beauty packaging eco-standards
✅ Electronics Manufacturing
Ideal for component encapsulation, PCB coating, FPC bonding, semiconductor assembly
Advantage: Low-temperature curing (no thermal damage) | High-strength bonding + insulation protection
✅ Automotive Industry
Applied in lamp assembly, interior bonding, body coating curing
Advantage: Withstands high/low temp & damp heat | Matches high-speed production lines | Boosts lightweight mass production
✅ 3C & Consumer Electronics
For phone/PC: housing coating, screen lamination, key bonding
Advantage: Balances rapid mass production & precision | Wear-resistant, anti-yellowing, aesthetic
✅ Other Industries
Covers medical supplies, building materials, new energy components
Advantage: Customizable wavelength | Eco-friendly | Cures plastic/metal/glass/composites
Configuration
(1) Power Supply (P-12030-H)
✅Intelligent Control
Equipped with a true-color full touch screen, supporting seamless switching between manual and automatic modes. The operation is intuitive and convenient, suitable for diverse production scenarios.
✅Precise Power Regulation
The output power can be adjusted in a range of 10% - 100%. It can be precisely calibrated according to curing process requirements to ensure consistent curing effects.
✅Safety Alarm
Fault alarm information is displayed in real time with visual cues, and alarm signals are output synchronously. This enables timely detection of equipment abnormalities and reduces downtime risks.
(2)Irradiator (I-12030-H)
✅Uniform Irradiation
Adopting an LED matrix arrangement design, it ensures the uniformity of radiation illuminance from the source, effectively eliminates curing blind spots, and improves product yield.
✅Flexible Adaptability
Compatible with RT series shielding brackets and conveying systems, and supports manual lifting adjustment. It can easily meet the curing requirements of workpieces of different specifications, featuring convenient and efficient installation and commissioning.
Product Description
Optimized for Industrial Curing Applications
This uv led curing equipment is engineered to meet the rigorous demands of industrial production environments, targeting manufacturing engineers and process managers requiring precise UV curing solutions. As a trusted uv curing manufacturer, our system offers adjustable curing intensity through an intelligent true-color full touch screen control, enabling seamless switching between automatic, manual, and foot pedal modes. Compact dimensions and configurable power and wavelength options support integration with existing production lines, addressing diverse substrate and material requirements with consistent repeatability that enhances throughput and quality assurance in high-volume operation.
Advanced Technical Design and Specifications
Incorporating cutting-edge LED matrix technology, this uv curing machine ensures uniform irradiation over a 120 × 30 mm area, minimizing blind spots for consistent curing outcomes. The system delivers peak irradiance up to 4000 mW/cm², with adjustable output from 10% to 100%, supported by reliable air cooling and a robust lifespan of ≥10,000 hours. Multiple UV wavelength options (395 nm standard with 385 nm and 365 nm alternatives) afford material-specific customization. Modular configuration using distinct power supply and irradiator units facilitates tailored integration and maintenance, meeting the stringent requirements expected from leading uv curing system manufacturers to achieve optimal curing precision and operational stability.
Versatile Applications Across Multiple Industries
This led uv curing system demonstrates broad applicability across sectors including electronics assembly, automotive interiors, packaging, medical devices, and consumer electronics manufacturing. It supports UV curing of coatings, adhesives, and inks on various substrates, enabling fast curing cycles that boost production efficiency while maintaining compliance with industrial standards. The equipment integrates seamlessly into flexo, screen, and digital printing lines as well as assembly workflows for PCB bonding and shell lamination, offering demonstrable ROI through enhanced product quality, consistent curing results, and low maintenance overhead consistent with best practices among uv led curing equipment providers.
Product Advantages
Integrated Design and Modular Construction
The uv curing machine features an intelligently modular design with separate power supply and irradiator modules, facilitating flexible system configuration and scalability. The compact form factor combined with a led uv curing system matrix ensures uniform UV exposure, eliminating curing shadows in production lines. Air cooling integrated within the enclosure enhances operational reliability and extends component lifespan. This structural approach offered by our uv curing system manufacturers enables straightforward retrofitting and customization, accommodating diverse manufacturing demands without compromising performance or footprint, streamlining installation and integration processes in existing automation setups.
Superior Performance and Operational Efficiency
Our uv led curing equipment is designed for high precision and user-friendly control, with an intuitive true-color full touch screen that enables rapid switching between control modes and precise output adjustment between 10% and 100%. The system’s extended service life and high peak irradiance support sustained high-throughput production with minimal downtime. Features like automatic and manual modes and foot pedal control improve operator ergonomics and process flexibility. These performance attributes provide end users with reliable, reproducible curing results and enhance operational uptime, directly contributing to improved ROI and adherence to strict process control standards valued by uv curing manufacturers globally.
Use Scenarios
Enhancing Electronic Assembly Line Efficiency
In electronics manufacturing environments, specifically PCB assembly and consumer device production, this uv curing system plays a pivotal role in curing UV adhesives and coatings that ensure electrical insulation and mechanical bonding integrity. The system’s adjustable output and selectable wavelengths conform to material specifications typical in electronics, allowing precise curing without damaging sensitive components. Its compact, modular design facilitates integration within automated assembly lines, providing a reliable curing stage that supports quality assurance and process reproducibility required by industry standards. The uv led curing equipment’s consistent irradiation and air cooling ensure stable long-term operation in continuous production settings.
Boosting Productivity in Packaging and Printing
Within flexographic, screen, and digital printing contexts, this led uv curing system significantly improves the curing of UV inks and coatings on packaging labels, enhancing gloss, durability, and throughput. Its uniform LED matrix output supports fast curing speeds compatible with high-speed printing lines, preventing curing defects and enabling tighter production tolerances. The intelligent control interface allows operators to adapt curing parameters quickly for different substrates, supporting dynamic production runs. Seamless integration into existing conveyor and curing workflows reduces setup time and optimizes line efficiency, making it a preferred choice among uv curing system manufacturers focused on delivering scalable solutions tailored to packaging and printing industry requirements.
FAQ
What materials can your UV LED curing system process?
Our UV LED curing system efficiently cures coatings, adhesives, and inks on varied substrates such as packaging labels, electronic components, medical devices, and automotive parts. We tailor output and wavelength to ensure precise curing across these materials, meeting diverse industrial needs with high reliability.
Can you customize the UV LED curing machine to fit specific production requirements?
Yes, we offer customization for our UV LED curing system, including adjustable power from 10% to 100%, selectable wavelengths (395 nm standard, optional 385 nm or 365 nm), and irradiation widths. This flexibility supports tailoring to your exact curing and line integration needs.
Do you provide installation and commissioning for the UV curing machine?
We provide on-site installation and commissioning services for our uv curing machine to ensure smooth integration into your production line. Our technicians support setup, calibration, and training, helping you maintain consistent curing results and maximize equipment efficiency.
What maintenance is required to ensure long-term reliability of the LED UV curing system?
Our led uv curing system is designed for stable operation with air cooling and a service life of over 10,000 hours. Routine performance testing and calibration help maintain consistent curing intensity. We recommend scheduled checks and cleanings according to production volume and environment for best results.
