| Item | Specification |
|---|---|

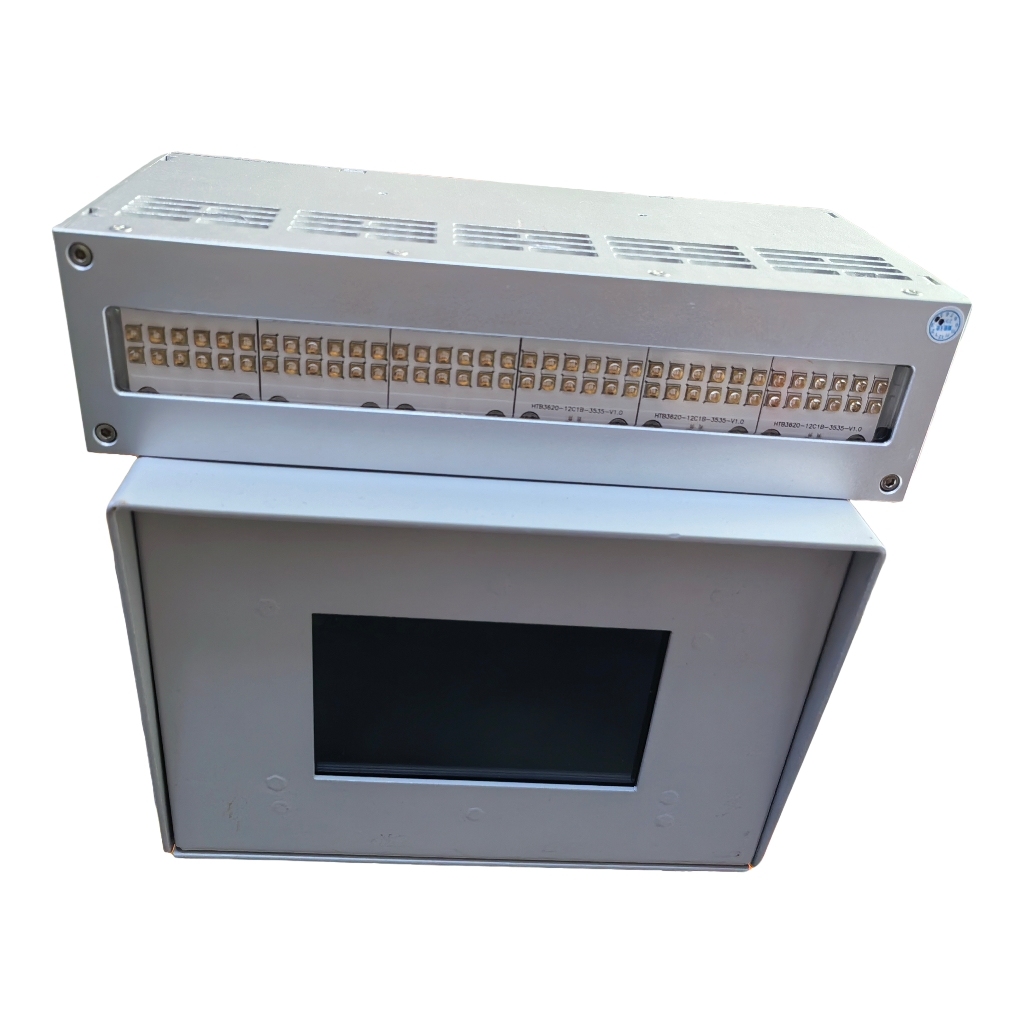

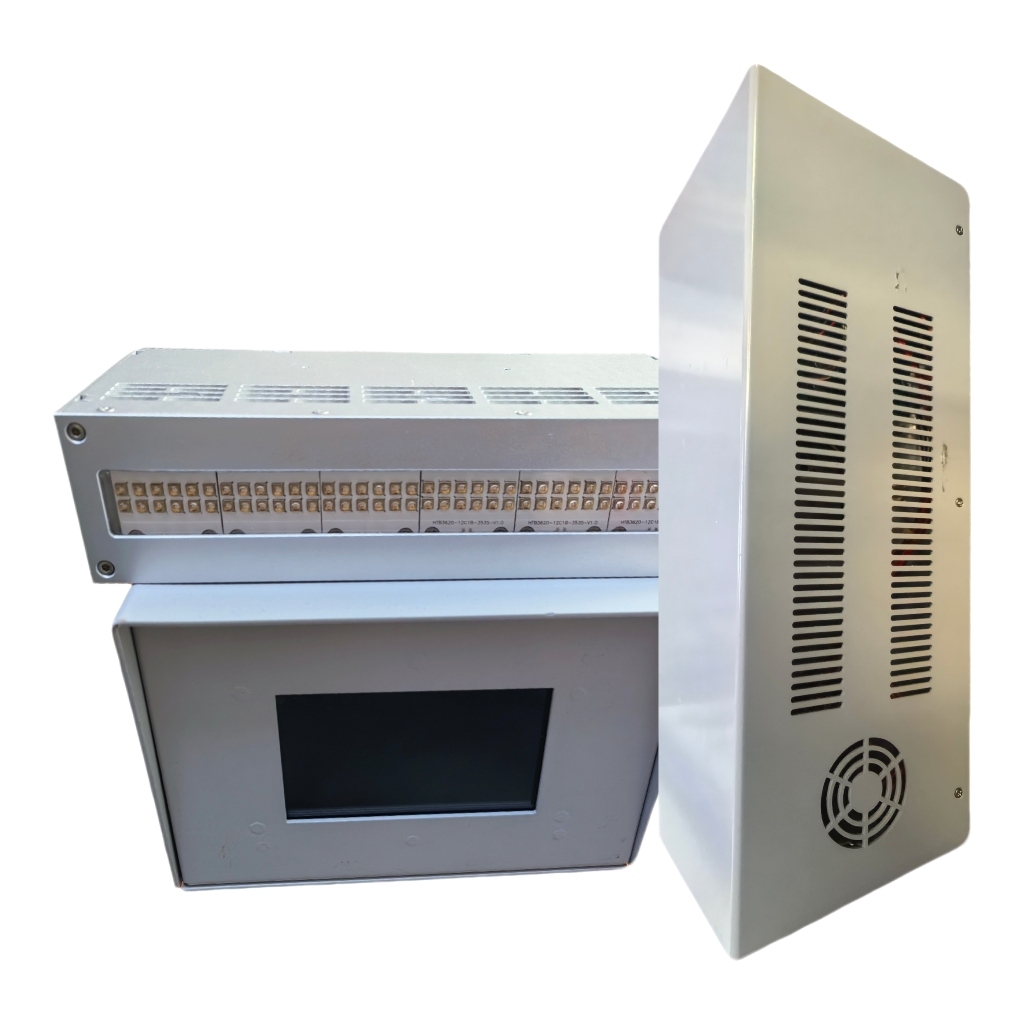

| Product Name | UV LED Curing system |
| Model Number | JSY-22020-405-H |
| Irradiation Area | 100*20 (mm) (L×W) |
| Dimensions | 240× 120 × 60mm (L×W×H) |
| UV Wavelength | 405 nm （385nm, 395 nm or 405 nm wavelength is optional） |
| Control Mode | Manual control; Timing/Automated can be customized |
| Cooling Method | Air Cooling |
| Power Adjustment Range | 10% - 100% |
| Life Time | ≥10,000 Hours |
| Peak Irradiance | 1500 mW/cm² (Tested at 10 mm Height) |
| Power | 150 W |
| Voltage | 220 VAC |
✅ Packaging & Printing
Fits flexo/screen/digital printing
For labels, color boxes, flexible packaging (varnishing/laminating/bonding)
Advantage: Uniform gloss, anti-scratch, solvent-free | Meets food/beauty packaging eco-standards
✅ Electronics Manufacturing
Ideal for component encapsulation, PCB coating, FPC bonding, semiconductor assembly
Advantage: Low-temperature curing (no thermal damage) | High-strength bonding + insulation protection
✅ Automotive Industry
Applied in lamp assembly, interior bonding, body coating curing
Advantage: Withstands high/low temp & damp heat | Matches high-speed production lines | Boosts lightweight mass production
✅ 3C & Consumer Electronics
For phone/PC: housing coating, screen lamination, key bonding
Advantage: Balances rapid mass production & precision | Wear-resistant, anti-yellowing, aesthetic
✅ Other Industries
Covers medical supplies, building materials, new energy components
Advantage: Customizable wavelength | Eco-friendly | Cures plastic/metal/glass/composites
Product Description
Optimized Solution for Industrial Users
This led uv curing system is engineered primarily for industrial production lines and R&D environments requiring accurate curing of UV-curable coatings, adhesives, and inks. As a product from experienced uv curing system manufacturers, it addresses the needs of engineers and process managers by providing consistent irradiation and controllable power output. The system’s compact form factor and compatibility with typical production setups enforce its role as a dependable uv curing machine suitable for inline and batch processing. Its advanced control features enable easy adaptation to diverse material formulations and process parameters, targeting professionals who demand reliability and precision.
Advanced Technical Specifications and Controls
Featuring a 150 W UV LED light source with a stable 100×20 mm irradiation area, this uv led curing equipment delivers uniform peak irradiance of 1500 mW/cm², minimizing curing inconsistencies. The system offers selectable UV wavelengths (385 nm, 395 nm, or 405 nm), allowing optimization for specific chemistry requirements. The true-color full-touch intuitive interface supports manual and automated timing modes, and stepless power control from 10% to 100% enables precise energy adjustment per substrate type. Equipped with air cooling and a compact 240×120×60 mm footprint, this led uv curing system ensures integration flexibility while maintaining long operational lifetime exceeding 10,000 hours, critical for continuous industrial usage.
Industry Applications Highlighting Versatility and Return on Investment
Our uv curing machine finds extensive application in electronics assembly, automotive interiors, medical consumables, and 3C device fabrication—domains where fast, stable, and low-heat curing is paramount. The system enhances process throughput by delivering rapid cures on substrates such as metal, plastic, and glass, thereby reducing bottlenecks in packaging, labeling, and printing industries. Its compatibility with conveyors and shielding fixtures facilitates seamless integration into automated workflows, providing operational efficiency and consistent product quality. Purchased from trusted uv curing system manufacturers, this uv led curing equipment supports scalable production with reduced energy consumption and improved bonding performance, translating directly into measurable cost savings.
Product Advantages
Robust Design and Integration Compatibility
This uv led curing equipment stands out for its modular design enabling straightforward integration with existing production line hardware such as conveyors and shielding brackets. The compact structural dimensions and efficient air cooling contribute to minimized factory footprint and easier installation. Manufactured by a reputed uv curing manufacturer, the unit’s selectable wavelength options and adjustable power settings provide high adaptability across varying curing requirements. The system’s consistent irradiance profile and patented technology guarantee reliability in high-volume industrial environments, ensuring operational stability and reduced downtime risks during intensive production cycles.
Enhanced Performance Delivering Operational Efficiency
From an operational perspective, this uv curing machine excels in delivering stable, uniform curing output with minimal thermal stress on sensitive materials. The stepless power adjustment and intuitive full-touch control interface simplify process calibration, reducing setup times and operator error. Long service life coupled with low maintenance needs enhance overall equipment effectiveness and return on investment. As a product from leading uv curing system manufacturers, it meets industrial standards for safety and performance, providing end-users confidence in maintaining product quality consistency while optimizing throughput and energy efficiency.
Use Scenarios
Application in Electronics Manufacturing
Within electronics production environments, this uv curing machine plays a critical role in encapsulating components, curing PCB coatings, and bonding flexible printed circuits. The precise energy delivery via the uv led curing equipment minimizes thermal exposure, protecting delicate circuits while ensuring full cure of adhesives and coatings. Its compact size allows insertion at key inline process points, streamlining workflow without requiring significant system redesign. Compliance with industrial safety and quality standards guarantees consistent performance, supporting manufacturers in meeting increasing demands for reliability and throughput in high-mix electronics assembly operations.
Role in Industrial Packaging and Printing Lines
In the packaging and printing sector, the led uv curing system efficiently accelerates curing phases for inks and coatings on diverse substrates such as paper, plastic films, and cartons. It reduces process cycle times and improves adhesion quality through its adjustable wavelength and uniform irradiance features. Integrated with conveyors and shielding fixtures, this uv led curing equipment facilitates continuous production flow with minimal operator intervention. Its compatibility with automated timing controls suits fast-paced industrial environments where precision and speed converge, enhancing overall operational productivity while adhering to environmental safety regulations.
What materials can the UV LED curing system effectively cure?
Our UV LED curing system is engineered to cure a wide range of UV-curable coatings, adhesives, and inks. It supports substrates including glass, plastic, metal, and electronics assemblies, ensuring consistent curing quality across various industrial materials demanded by precision manufacturing environments.
Can the UV LED curing system be customized to fit specific production lines?
Yes, our UV LED curing equipment offers flexible control modes including manual and automated timing options. The system’s wavelength (385 nm, 395 nm, or 405 nm) and power output (10–100% stepless adjustment) can be tailored to match your specific UV chemistry and workflow requirements.
How do you support integration of the UV LED curing system into existing production setups?
Our system is designed for easy integration, featuring compact dimensions and compatibility with shielding brackets or conveyors. We provide technical guidance to help you embed the UV curing system manufacturer solutions seamlessly within inline or batch curing applications.
What maintenance and durability can I expect from this UV LED curing machine?
We build our UV curing machine with long service life (≥10,000 hours) and air cooling for reliable performance. The stable irradiance and robust design minimize downtime and maintenance, ensuring consistent curing results for your industrial production needs.
