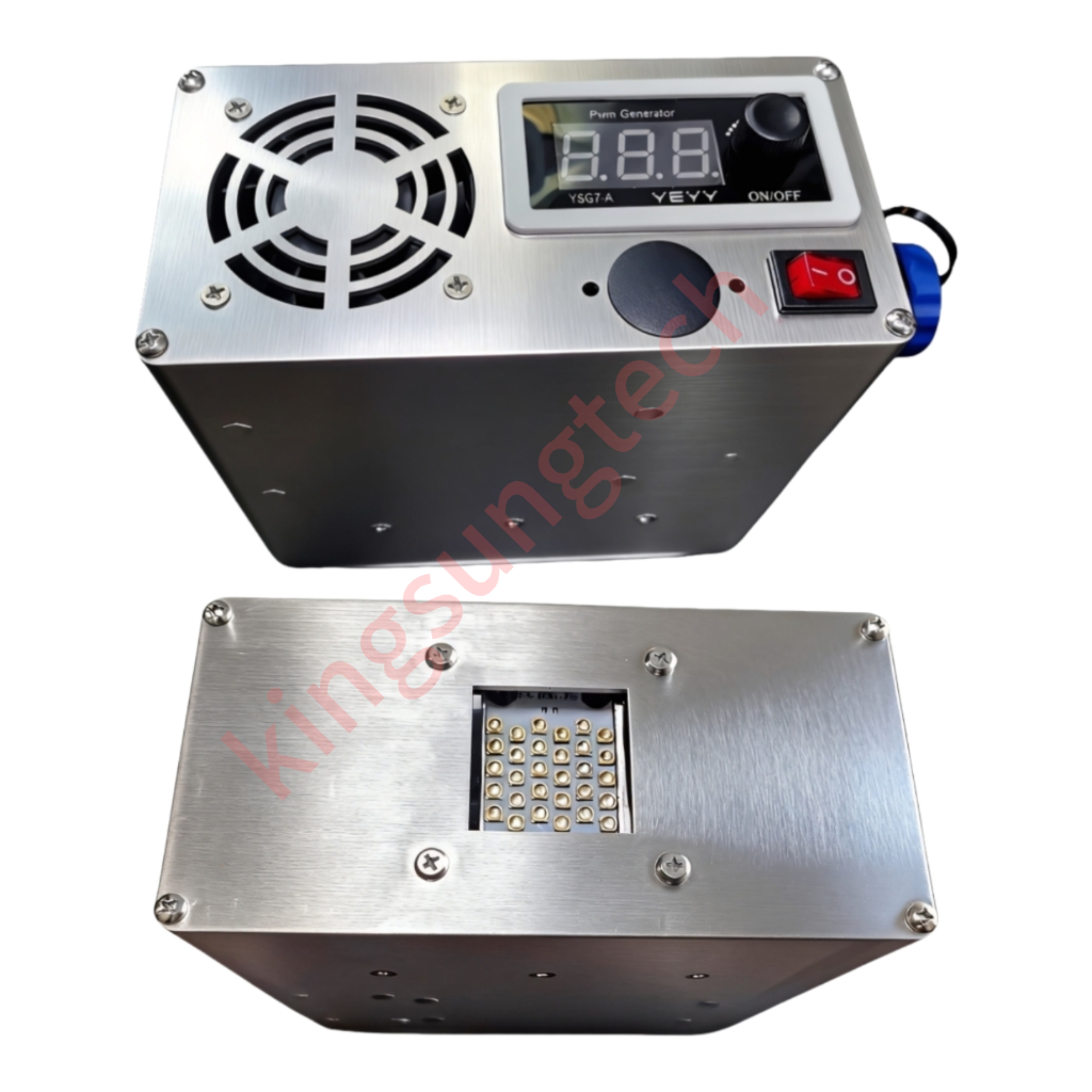

| Item | Specification |
|---|---|
| Product Name | UV LED Curing system |
| Model Number | JSY-3030-365-H |
| Dimensions | 160 × 80 × 154 mm (L×W×H) |
| Irradiation Area | 30 × 30 mm (L×W) |
| UV Wavelength | 365 nm （385nm, 395 nm or 405 nm wavelength is optional） |

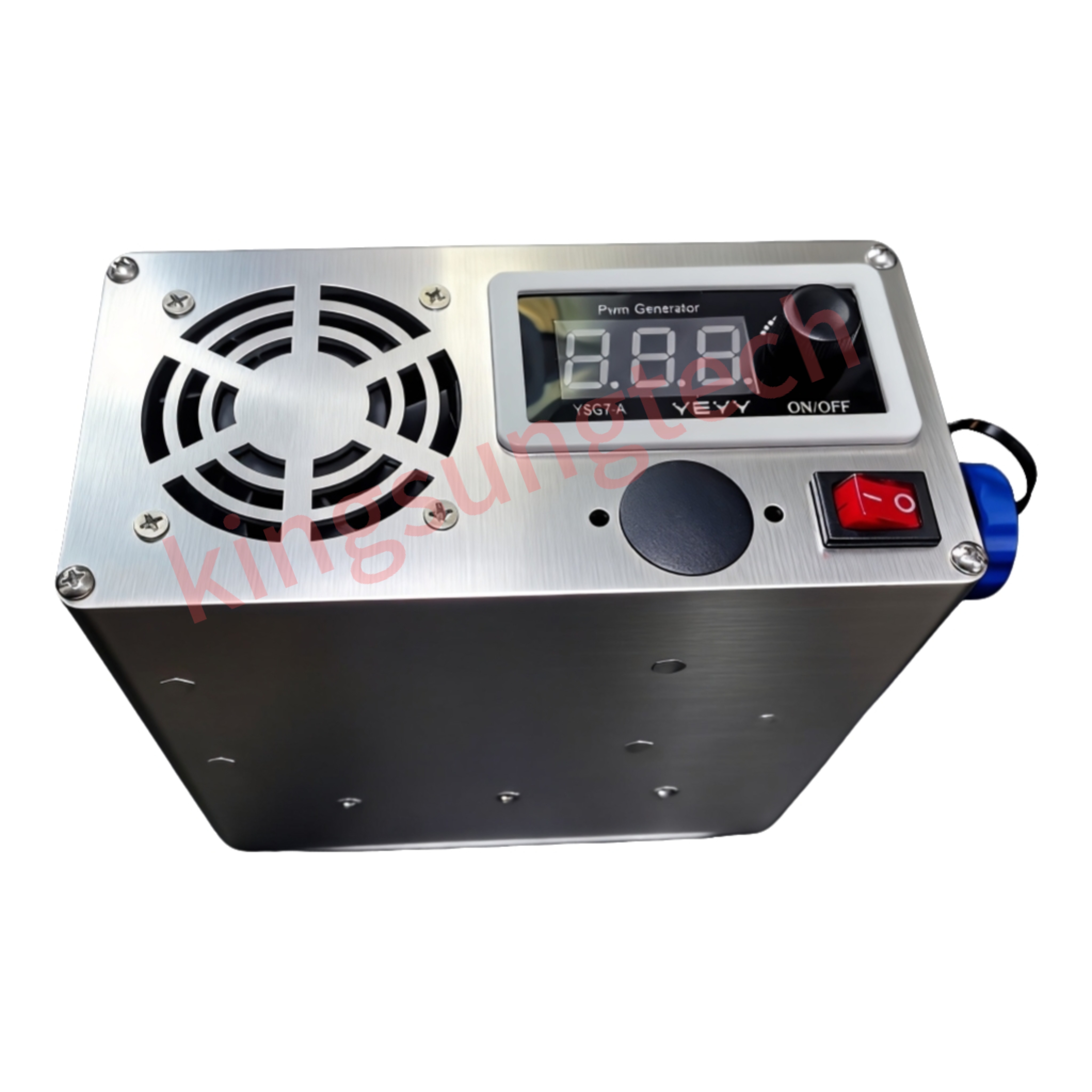

| Control Mode | Manual control; Timing/Automated can be customized. |
| Cooling Method | Air Cooling |
| Power Adjustment Range | 10% - 100% |
| Life Time | ≥10,000 Hours |
| Peak Irradiance | 3000 mW/cm² (Tested at 10 mm Height) |
| Power | 150 W |
| Voltage | 220 VAC |
✅ Packaging & Printing
Fits flexo/screen/digital printing
For labels, color boxes, flexible packaging (varnishing/laminating/bonding)
Advantage: Uniform gloss, anti-scratch, solvent-free | Meets food/beauty packaging eco-standards
✅ Electronics Manufacturing
Ideal for component encapsulation, PCB coating, FPC bonding, semiconductor assembly
Advantage: Low-temperature curing (no thermal damage) | High-strength bonding + insulation protection
✅ Automotive Industry
Applied in lamp assembly, interior bonding, body coating curing
Advantage: Withstands high/low temp & damp heat | Matches high-speed production lines | Boosts lightweight mass production
✅ 3C & Consumer Electronics
For phone/PC: housing coating, screen lamination, key bonding
Advantage: Balances rapid mass production & precision | Wear-resistant, anti-yellowing, aesthetic
✅ Other Industries
Covers medical supplies, building materials, new energy components
Advantage: Customizable wavelength | Eco-friendly | Cures plastic/metal/glass/composites
Product Description
Targeted Industrial UV Curing Solution
Designed specifically for manufacturers and engineers, this led uv curing system by a reputable uv curing manufacturer is engineered to meet the demands of high-speed production environments. It serves industries requiring rapid curing of coatings, adhesives, and inks with minimal thermal impact. Target users include electronics prototyping engineers, packaging manufacturers, and automotive component fabricators. The system’s compact footprint enables integration into existing assembly lines or testing benches, providing adaptable curing performance that supports automation with customizable timing, enhancing yield and operational efficiency.
Advanced Technical Capabilities and Specifications

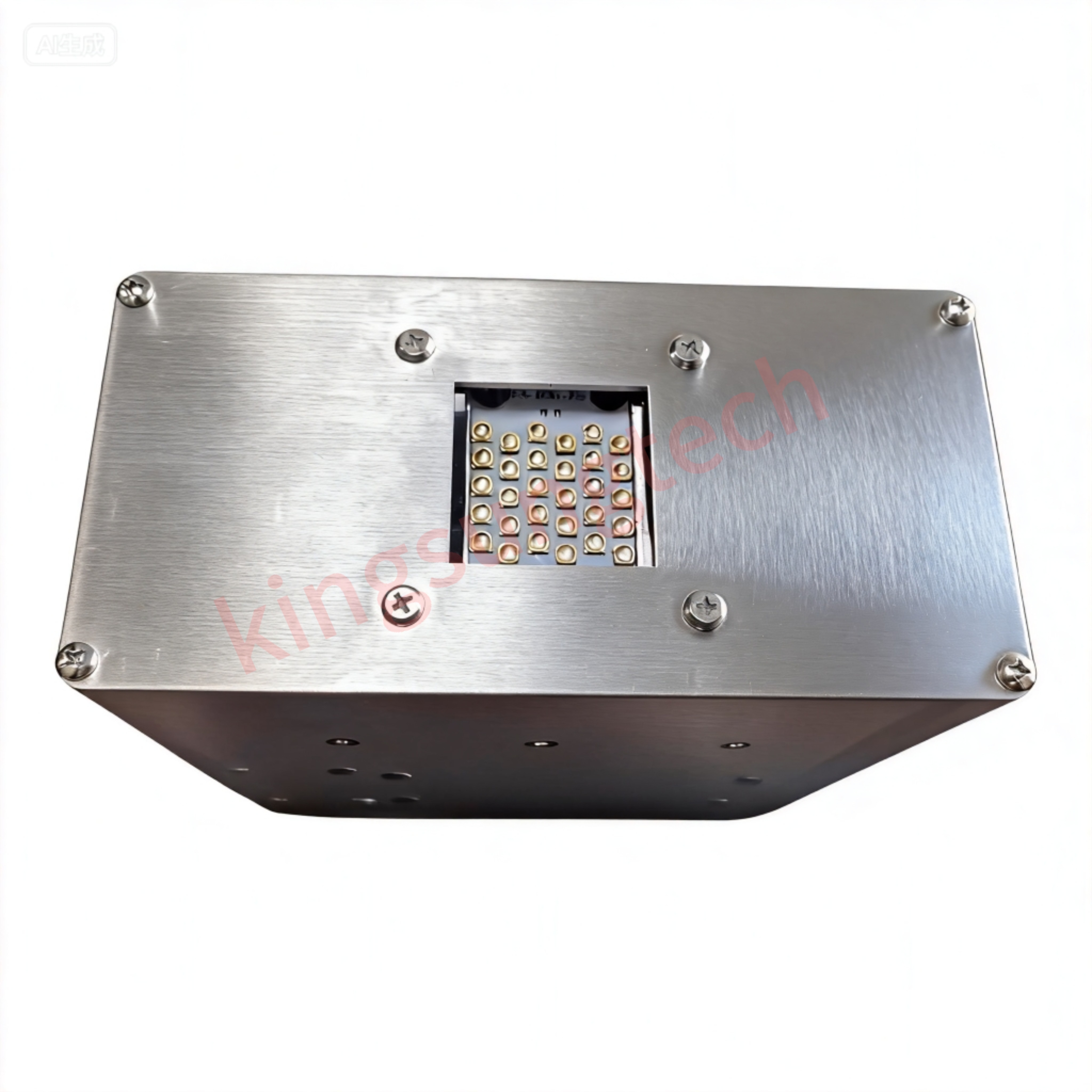

This uv led curing equipment features a 150 W LED light source with air cooling, achieving peak irradiance up to 3000 mW/cm² across a 30 × 30 mm illumination area. Adjustable power output ranges from 10% to 100%, enabling precise control over curing intensity tailored to various material thicknesses and UV-curable formulations. The system includes a matrix LED layout to ensure consistent, stable light distribution, improving process uniformity. Multiple wavelength options (365 nm standard, with 385/395/405 nm variants) provide compatibility across diverse applications while operating at 220 VAC for straightforward integration.
Practical Applications Across Multiple Industries
This uv curing machine excels in critical sectors like electronics manufacturing—supporting PCB coating and component encapsulation—as well as in flexible packaging for on-site and inline curing of labels and inks. Its precision and low heat output enable reliable bonding and coating curing even on heat-sensitive substrates commonly used in automotive interiors and medical consumables prototyping. The flexible automation interface allows seamless integration into production lines, facilitating validation tests, prototype development, and small-batch manufacturing runs that demand consistent UV curing quality.
Product Advantages
Structural and System Design Benefits
The design of this uv led curing equipment emphasizes modularity and compactness, easing integration with existing automation systems including JSYC-series shields and conveyor assemblies. Its air-cooled configuration reduces maintenance complexity compared with liquid-cooled alternatives. The uniform LED matrix layout ensures even irradiance, critical for process consistency. Moreover, selectable wavelengths and adjustable power settings provide necessary flexibility for diverse substrate requirements, marking it as a versatile product among uv curing system manufacturers focused on industry-grade solutions.
Performance and User-Centric Value
From a performance perspective, this led uv curing system offers exceptional irradiance stability and rapid curing times, crucial for reducing cycle durations and optimizing throughput. The user interface supports manual and automated control modes, enabling operators to customize curing parameters for different workflows efficiently. Its low thermal load safeguards sensitive materials while maintaining high bond strength and finish quality. These factors collectively enhance process reliability and lower operating costs, delivering tangible ROI for production facilities adopting this uv curing machine.
Use Scenarios
On-Site Testing in Flexible Packaging Production
In the packaging industry, especially for flexo, screen, and digital printing of labels, this uv led curing equipment serves as an essential tool for in-line curing trials and quality validation. Operating within factory environments, it facilitates rapid curing of inks and coatings with minimal heat stress, preventing substrate deformation. The device’s compact size allows easy placement on production lines or testing tables. Its configurable power and wavelength options match specific ink formulations, ensuring compliance with product standards and enabling quick adjustments during production scale-up or pilot runs.
Electronics Prototype Coating and Bonding Processes
Within electronics development, particularly for PCB coatings and flexible printed circuit (FPC) bonding, this uv curing machine supports prototype fabrication by providing reliable UV curing without damaging delicate components. Its stable, high-intensity UV output ensures thorough polymerization of coatings and adhesives. Integration with existing lab automation enables precise timing control, suitable for iterative development cycles. This capability helps engineers optimize coatings for durability and electrical insulation while maintaining stringent process reproducibility in highly controlled R&D and small batch manufacturing environments.
What wavelength options are available in your UV LED curing systems?
Our UV LED curing equipment offers a standard 365 nm wavelength with optional variants at 385 nm, 395 nm, and 405 nm. This flexibility allows you to select the optimal UV curing system for various coatings and inks to ensure effective curing across different materials.
Can I adjust the power level and automate the curing process?
Yes, our UV curing system manufacturers provide models with a power adjustment range from 10% to 100%. You can control curing manually or set timer-triggered automation to fit your production requirements, ensuring precise control over curing time and intensity.
How compact is the JSY-3030-365-H model, and what are its electrical specifications?
The JSY-3030-365-H model measures 160 × 80 × 154 mm and operates at 220 VAC with a power rating of 150 W. Its compact size and air-cooling design support easy integration into existing lines, making it a reliable UV curing machine choice for space-constrained environments.
Do you offer customization to integrate the UV LED curing system into production lines?
We provide customization options, including timer automation and compatibility with JSYC-series shielding brackets or conveyors. Whether you need tailored wavelength, power, or integration support, our LED UV curing system solutions can be adapted to fit your specific industrial process.
