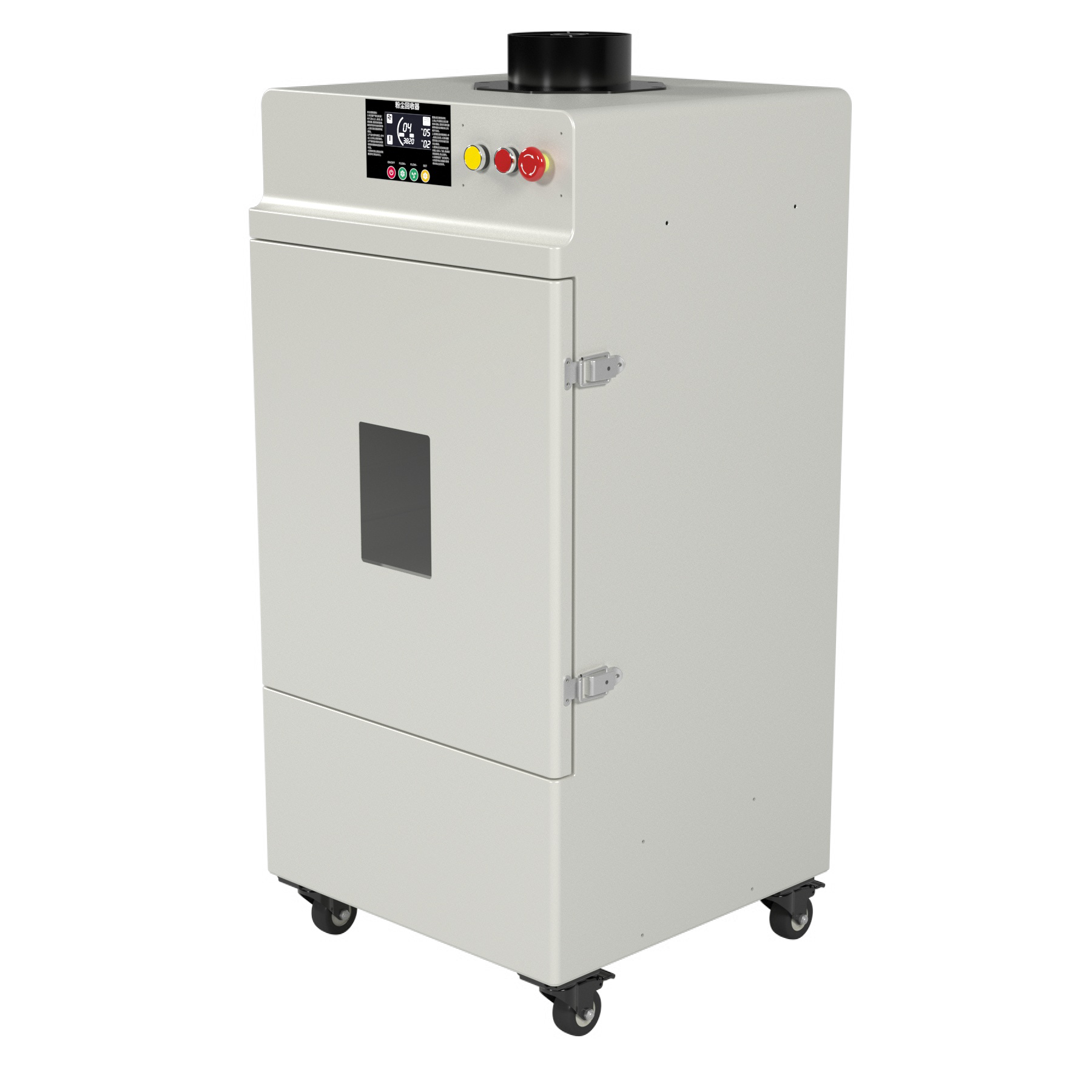

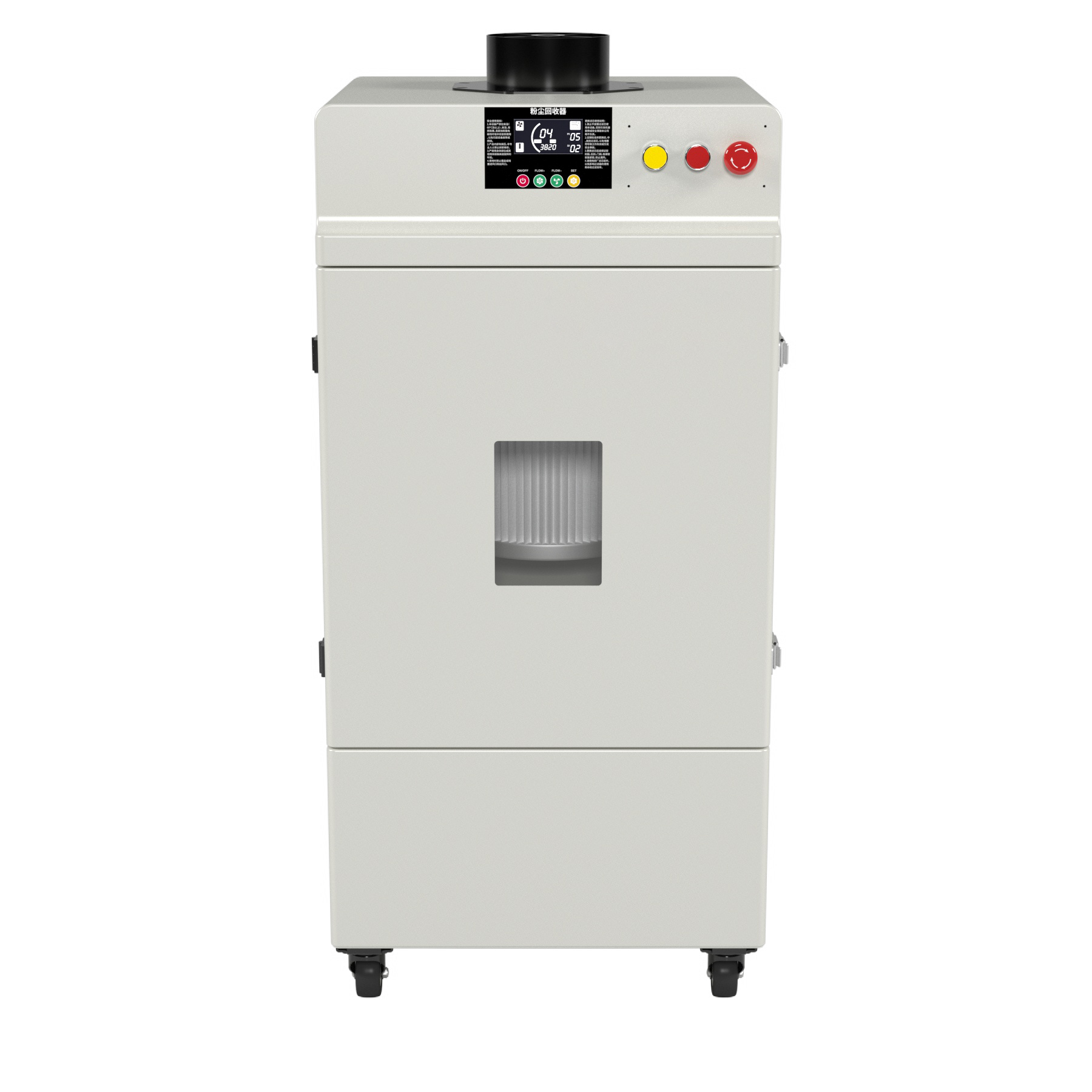

Dust collector (with RS485 communication function)-Model: KRDP3900

No.JS-R3900P
Model: JS-R3900P
  • Dust collector (with RS485 communication function)-Model: KRDP3900
  • Dust collector (with RS485 communication function)-Model: KRDP3900
  • Dust collector (with RS485 communication function)-Model: KRDP3900
  • Dust collector (with RS485 communication function)-Model: KRDP3900
  • Dust collector (with RS485 communication function)-Model: KRDP3900

Description

Power

1000W

Voltage

AC110/220V 50HZ

Air volume

1500m³/h

Pressure

4500pa

Filtering efficiency

0.3μm 99.97%

Flange

Ø160mm

Dust box

8.7L

Dimensions(mm)

L550*W540*H1220mm

Features

  • Newly upgraded with RS485 communication support.

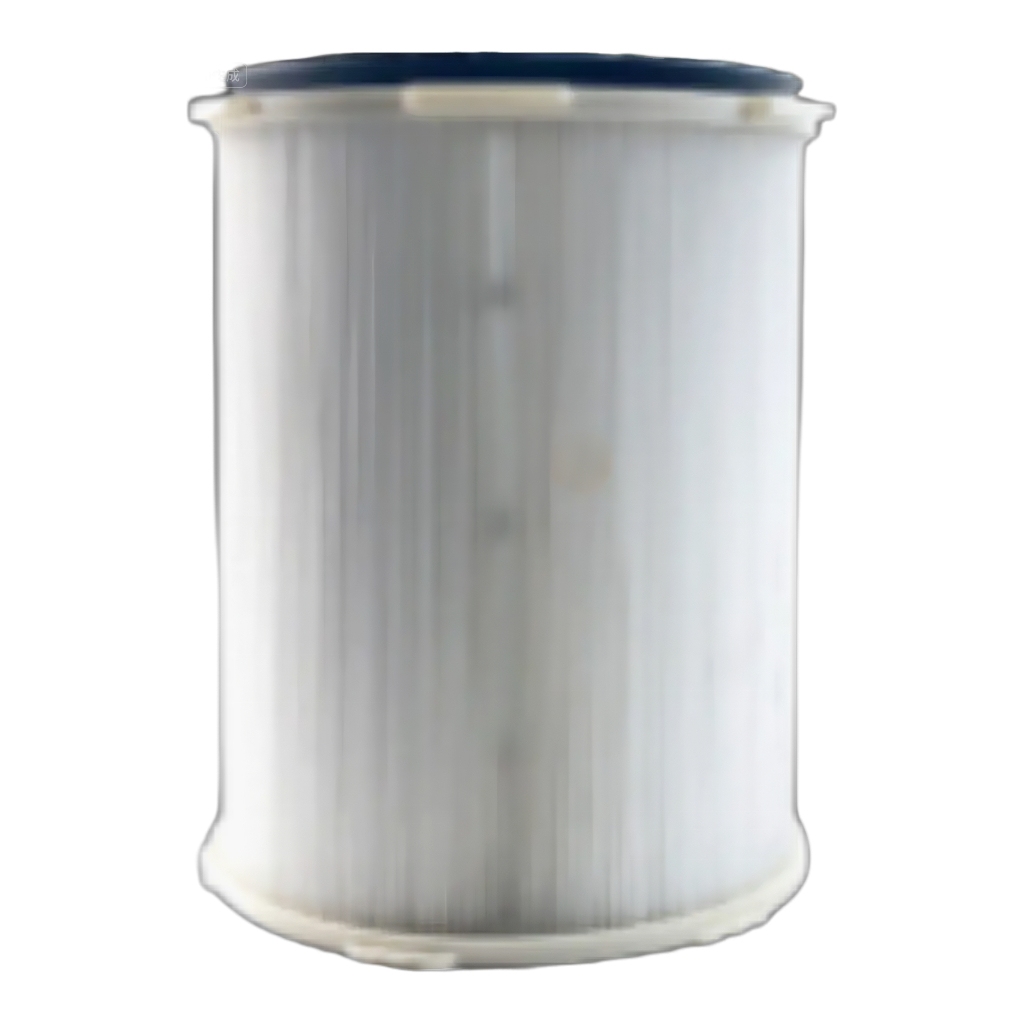

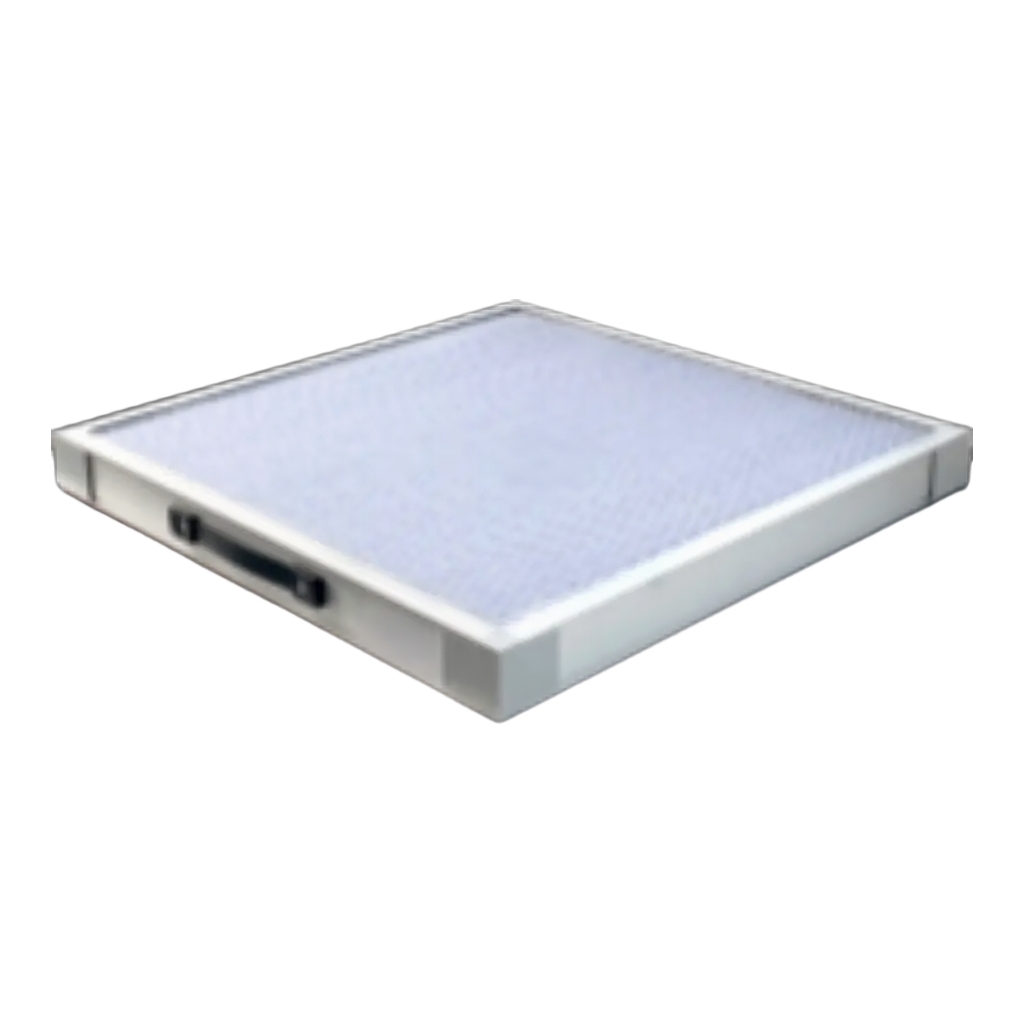

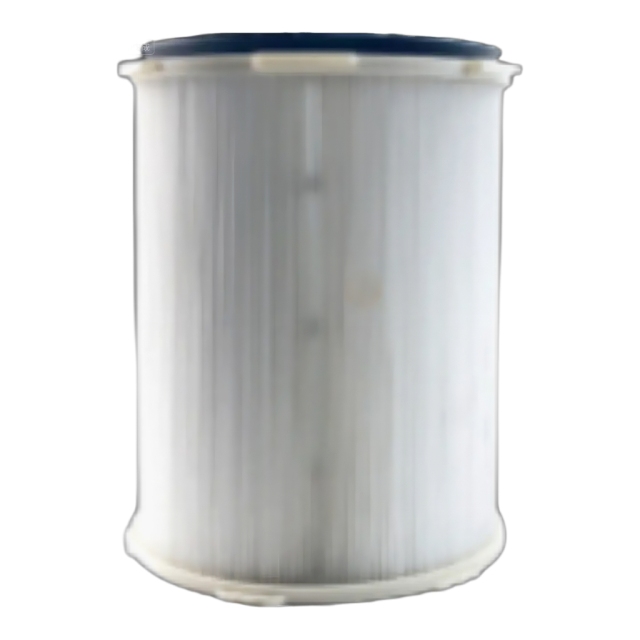

  • Equipped with medium-efficiency and molecular filters, effectively capturing dust, odors, and toxic/harmful gases generated during production processes.
  • Excellent dust filtration and odor removal performance.

Application

Ideal for electric welding, twin-wire welding, laser welding, argon arc welding, laser cutting, grinding, and other industrial scenarios.

Smart Adaptation for Greater Convenience

Equipped with the new RS485 communication function, it seamlessly integrates with industrial control systems, enabling remote monitoring and linked operations. This enhances automated management efficiency, perfectly meeting the needs of modern workshop operations.

Dual Filtration for Maximum Peace of Mind

Featuring a high-efficiency medium-efficiency filter + molecular filter, it forms a closed-loop purification system with dual protection. Whether it’s metal dust from welding or cutting, pungent odors, or toxic and harmful gases, all can be accurately captured and efficiently purified. Its filtration efficiency far exceeds that of ordinary equipment.

Stable, Durable, and Cost-Effective

Optimized internal structure design extends the filter service life and significantly lengthens maintenance intervals. This reduces downtime for maintenance while lowering consumable replacement costs, helping enterprises save on operational expenses.
